HYDRAULIC CHAIN HOIST
BOP HANDLING SYSTEM / SERVICE HOISTS

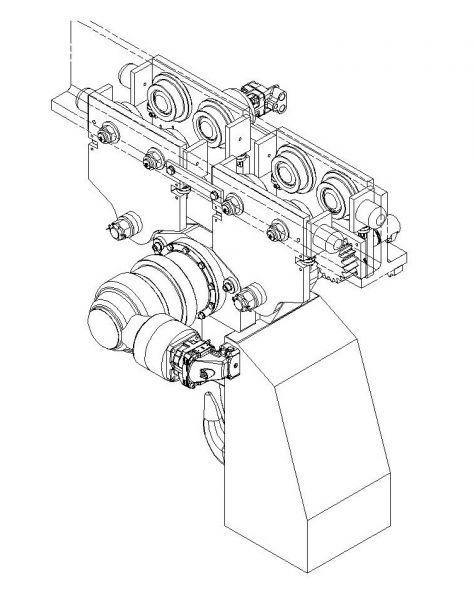

HYDRAULIC SERVICE HOIST

Zobacz galerię





  • Lifting Capacity: 5, 12, 18, 25, 50, 60, 75, 100 tons
  • Emergency lowering system
  • APIK7K regulations
  • NORSOK regulations
  • DNV / ABS certification
  • PSA authorization
  • EX zone design
  • ISDS certification
  • Painting acc. to Norsok M501 – Isocyanate free paint
  • Variable speed with full/ no load
  • Central lubrication system
  • Remote contro
  • Easy mounted – adjustable trolleys






Lifting speed [m/min]**
Dimensions
BOB SWL [kg]* full load no load Falls no. Chain Weight [kg] A B C D E F***
BOB 5 5000 0,5 1,5 4 8x24 484 640 950 1050 599 557 220-300
BOB 12 12000 0,5 1,5 2 16x45 635 640 1209 1210 609 556 220-300
BOB 18 18000 0,5 1,5 3 16x45 1061 1240 1100 1255 609 678 220-300
BOB 25 25000 0,5 1,5 4 16x45 1129 1240 1100 1255 609 638 220-300
BOB 50 50000 0,5 1,5 4 23,5x60 3930 2928 1505 1844 657,5 850 300-350
BOB 60 60000 0,5 1,5 4 23,5x66 3930 2928 1505 1844 657,5 850 300-350
BOB 75 75000 0,5 1,5 3 32x90 8749 3850 1690 2246 684 1205 300-350
BOB 100 100000 0,5 1,5 4 32x90 8886 8850 1690 2246 684 1167 300-350

* SWL up to 200 000kg - tandem solution
** Lifting speed adjustable to customer requirements
*** Beam size according to customer requirements
**** Lifting height according to customer requirements
