HYDRAULIC CHAIN HOIST
BOP HANDLING SYSTEM / SERVICE HOISTS

BOP HYDRAULIC CHAIN HOIST

Zobacz galerię

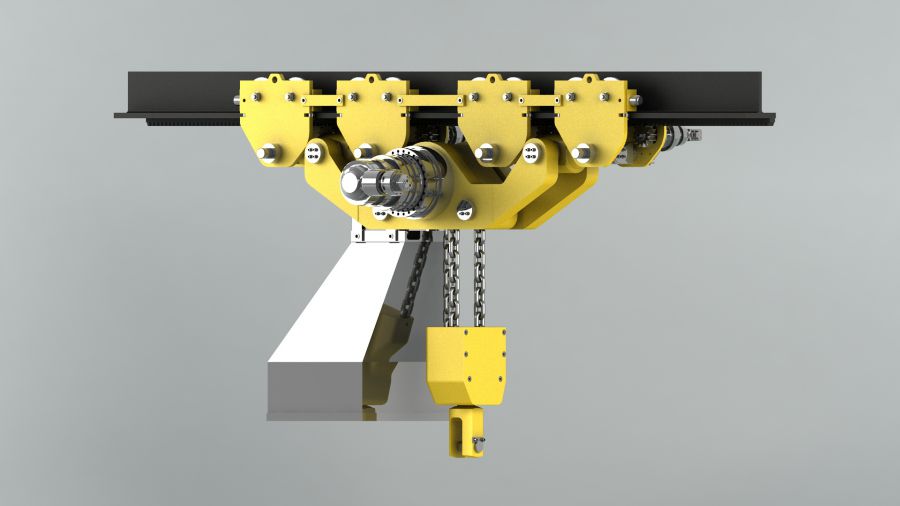

BOB hydraulic chain hoist was designed and manufactured to meet highly demanding requirements of offshore drilling activities. It's reliable in any applications. The equipment is API7K, DNV and ABS  certified.

Purchasing BOB You get:



  • Lifting Capacity: 5, 12, 18, 25, 50*, 60*, 75, 100*, 150*, 200* tons *capacity of a system composed of two hoists working in a tandem.
  • Emergency lowering system
  • Painting acc. to Norsok M501 – Isocyanate free paint
  • Variable speed with full/ no load
  • Central lubrication system
  • Remote control
  • Automatic Multi Disc Brake
  • Easy mounted – adjustable trolleys





If our standard features or hoisting system does not meet your special applications don't worry... customized versions of our equipment is our speciality.



BOB hydraulic chain hoist meets or exceeds the requirements of the following authorities:

  • AMERICAN PETROLEUM INSTITUTE (API)
  • DET NORSKE VERITAS (DNV)
  • AMERICAN BUREAU OF SHIPPING (ABS)
  • NORSOK
  • PETROLUM SAFETY AUTHORITY (PSA)
  • ISDS logical system certification



On request we assure individual official acceptance by corresponding authorities to your choice.


Lifting speed [m/min]**
Dimensions
BOB SWL [kg]* full load no load Falls no. Chain Weight [kg] A B C D E F***
BOB 5 5000 0,5 1,5 4 8x24 484 640 950 1050 599 557 220-300
BOB 12 12000 0,5 1,5 2 16x45 635 640 1209 1210 609 556 220-300
BOB 18 18000 0,5 1,5 3 16x45 1061 1240 1100 1255 609 678 220-300
BOB 25 25000 0,5 1,5 4 16x45 1129 1240 1100 1255 609 638 220-300
BOB 50 50000 0,5 1,5 4 23,5x60 3930 2928 1505 1844 657,5 850 300-350
BOB 60 60000 0,5 1,5 4 23,5x66 3930 2928 1505 1844 657,5 850 300-350
BOB 75 75000 0,5 1,5 3 32x90 8749 3850 1690 2246 684 1205 300-350
BOB 100 100000 0,5 1,5 4 32x90 8886 8850 1690 2246 684 1167 300-350

* SWL up to 200 000kg - tandem solution
** Lifting speed adjustable to customer requirements
*** Beam size according to customer requirements
**** Lifting height according to customer requirements



BOB hydraulic chain hoist was designed and manufactured in EU.
